Mineral lenses
Our mineral lenses stand for exceptional surface hardness, high scratch resistance, and brilliant optical properties. They are particularly suitable for demanding applications and offer long-lasting quality – manufactured with the highest precision and technical expertise.
Mineral lenses
Our mineral lenses stand for exceptional surface hardness, high scratch resistance, and brilliant optical properties. They are particularly suitable for demanding applications and offer long-lasting quality – manufactured with the highest precision and technical expertise.
MINERAL LENSES
Mineral progressive lenses

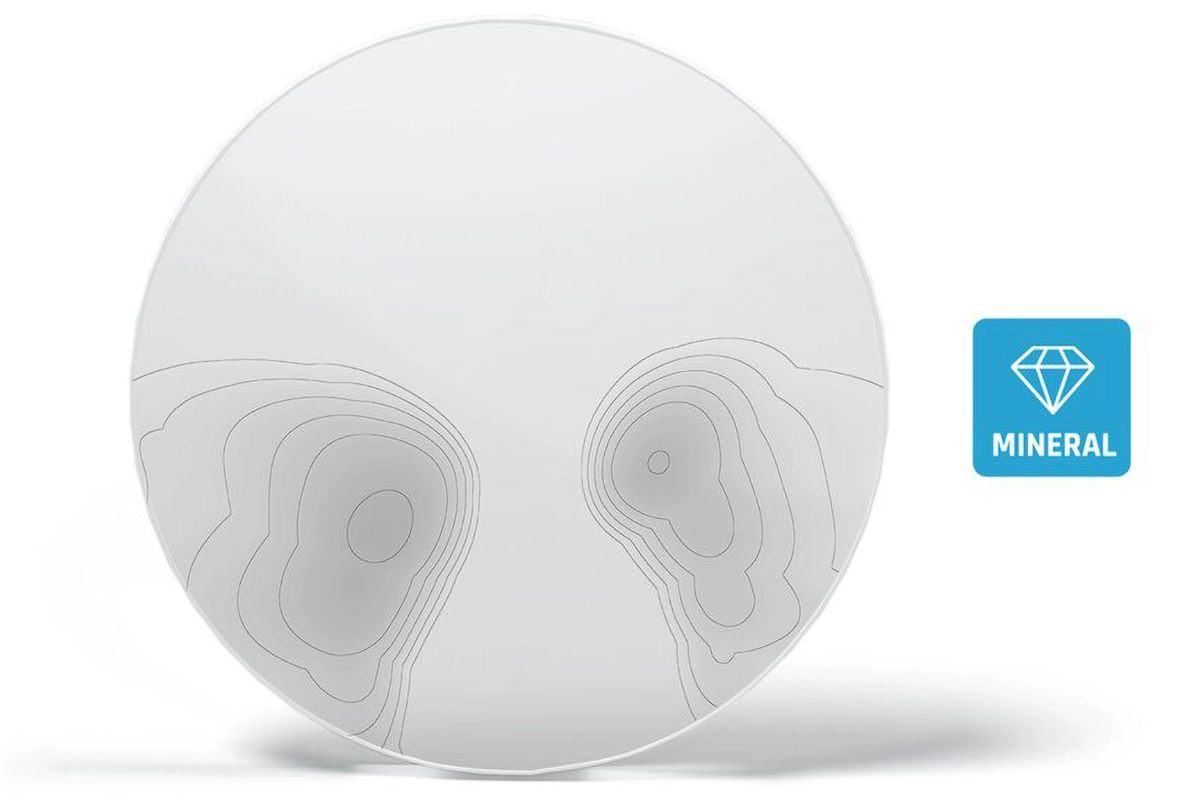

High-end design | Cube 4 Mineral
| DESIGN FEATURES | |
|---|---|
| Available corridor length | 11 mm |
| Centration cross position | 4 mm |
| Inset | 2.5 mm |
| Fitting recommendation | 2 mm below the centre of the pupil, with straight-ahead gaze and habitual head and body posture. |
| FEATURES | |
|---|---|
| Near | 𒊹 𒊹 𒊹 𒊹 𒊹 |
| Transition | 𒊹 𒊹 𒊹 𒊹 𒊹 |
| Distance | 𒊹 𒊹 𒊹 𒊹 𒊹 |
| Adaptation | 𒊹 𒊹 𒊹 𒊹 𒊹 |
Material
SUPPLY RANGES |
(Diameter-dependent) |
1.52 | |
|---|---|
SPH | -6 / +8 |
CYL | 6 dpt |
ADD | 0.75 to 3.50 |
∅ | 55 to 70 mm |
1.60 | |
|---|---|
SPH | -8 / +7 |
CYL | 6 dpt |
ADD | 0.75 to 3.50 |
∅ | 55 to 70 mm |
1.80 | |
|---|---|
SPH | -12 / 0 |
CYL | 6 dpt |
ADD | 0.75 to 3.50 |
∅ | 55 to 65 mm |
Mineral progressive lenses

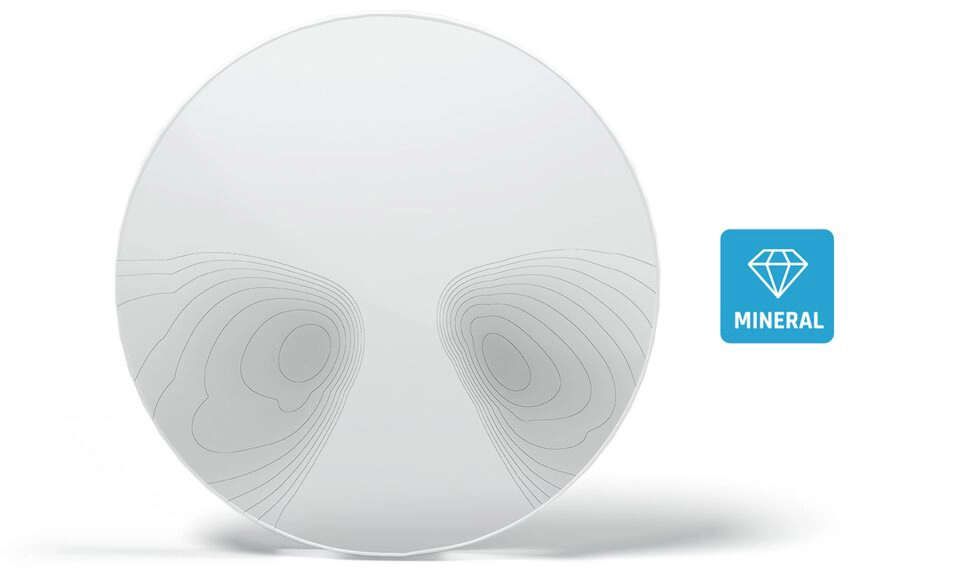

High-end design | Cube 2 Mineral
| DESIGN FEATURES | |
|---|---|
| Available corridor length | 11 mm |
| Centration cross position | 4 mm |
| Inset | 2.5 mm |
| Fitting recommendation | 2 mm below the centre of the pupil, with straight-ahead gaze and habitual head and body posture. |
| FEATURES | |
|---|---|
| Near | 𒊹 𒊹 𒊹 𒊹 𒊹 |
| Transition | 𒊹 𒊹 𒊹 |
| Distance | 𒊹 𒊹 𒊹 𒊹 𒊹 |
| Adaptation | 𒊹 𒊹 𒊹 𒊹 𒊹 |
Material
SUPPLY RANGES |
(Diameter-dependent) |
1.52 | |
|---|---|
SPH | -12 / +6 |
CYL | 6 dpt |
ADD | 0.75 to 3.50 |
∅ | 55 to 70 mm |
1.60 | |
|---|---|
SPH | -6 / +6 |
CYL | 6 dpt |
ADD | 0.75 to 3.50 |
∅ | 55 to 70 mm |
Mineral progressive lenses

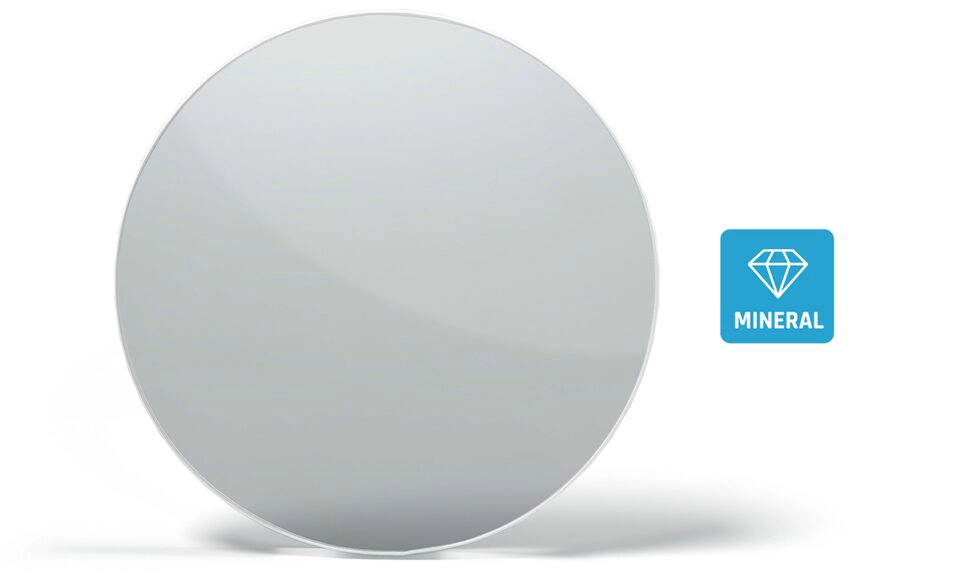

High-end design | Pyramid Mineral Classic
Material
SUPPLY RANGES |
(Diameter-dependent) |
1.52 | |
|---|---|
SPH | -10 / +8 |
CYL | 6 dpt |
∅ | 55 to 80 mm |
1.60 | |
|---|---|
SPH | -12 / +10 |
CYL | 6 dpt |
∅ | 55 to 75 mm |
1.70 | |
|---|---|
SPH | -14 / +10 |
CYL | 6 dpt |
∅ | 55 to 70 mm |
1.80 | |
|---|---|
SPH | -18 / +11 |
CYL | 6 dpt |
∅ | 55 to 70 mm |
1.90 | |
|---|---|
SPH | -25 / 0 |
CYL | 6 dpt |
∅ | 55 to 70 mm |
High-end design | Cube 4 Mineral
Mineral progressive lenses
High-end design | Cube 4 Mineral
| DESIGN FEATURES | |
|---|---|
| Available Corridor length | 11 mm |
| Centring cross Position | 4 mm |
| Insert 2.5 mm | |
| Recommended adjustment | 2 mm below centre of pupil, at zero viewing direction with habitual head- and body posture. |
| FEATURES | |
|---|---|
| Nearby | 𒊹 𒊹 𒊹 𒊹 𒊹 |
| Transition | 𒊹 𒊹 𒊹 𒊹 𒊹 |
| Ferne | 𒊹 𒊹 𒊹 𒊹 𒊹 |
| Adaption | 𒊹 𒊹 𒊹 𒊹 𒊹 |
Material
SUPPLY RANGES |
(Diameter-dependent) |
1.52 | |
|---|---|
SPH | -6 / +8 |
CYL | 6 dpt |
ADD | 0.75 to 3.50 |
∅ | 55 to 70 mm |
1.60 | |
|---|---|
SPH | -8 / +7 |
CYL | 6 dpt |
ADD | 0.75 to 3.50 |
∅ | 55 to 70 mm |
1.80 | |
|---|---|
SPH | -12 / 0 |
CYL | 6 dpt |
ADD | 0.75 to 3.50 |
∅ | 55 to 65 mm |
High-end design | Cube 2 Mineral
Mineral progressive lenses
High-end design | Cube 2 Mineral
| DESIGN FEATURES | |
|---|---|
| Available Corridor length | 11 mm |
| Centring cross Position | 4 mm |
| Insert 2.5 mm | |
| Recommended adjustment | 2 mm below centre of pupil, at zero viewing direction with habitual head- and body posture. |
| FEATURES | |
|---|---|
| Nearby | 𒊹 𒊹 𒊹 𒊹 𒊹 |
| Übergang | 𒊹 𒊹 𒊹 |
| Ferne | 𒊹 𒊹 𒊹 𒊹 𒊹 |
| Adaption | 𒊹 𒊹 𒊹 𒊹 𒊹 |
Material
SUPPLY RANGES |
(Diameter-dependent) |
1.52 | |
|---|---|
SPH | -12 / +6 |
CYL | 6 dpt |
ADD | 0.75 to 3.50 |
∅ | 55 to 70 mm |
1.60 | |
|---|---|
SPH | -6 / +6 |
CYL | 6 dpt |
ADD | 0.75 to 3.50 |
∅ | 55 to 70 mm |
High-end design | Pyramid Mineral Classic
Mineral progressive lenses
High-end design | Pyramid Mineral Classic
Material
SUPPLY RANGES |
(Diameter-dependent) |
1.52 | |
|---|---|
SPH | -10 / +8 |
CYL | 6 dpt |
∅ | 55 to 80 mm |
1.60 | |
|---|---|
SPH | -12 / +10 |
CYL | 6 dpt |
∅ | 55 to 75 mm |
1.70 | |
|---|---|
SPH | -14 / +10 |
CYL | 6 dpt |
∅ | 55 to 70 mm |
1.80 | |
|---|---|
SPH | -18 / +11 |
CYL | 6 dpt |
∅ | 55 to 70 mm |
1.90 | |
|---|---|
SPH | -25 / 0 |
CYL | 6 dpt |
∅ | 55 to 70 mm |
